Data on Liquor Sales Analysis in Iowa

Posted on Mar 19, 2022

The skills I demoed here can be learned through taking Data Science with Machine Learning bootcamp with NYC Data Science Academy.

Background

According to NABCA, National Alcohol Beverage Control Association, Iowa became one of the first Control states in 1934. The state regulates the traffic in alcoholic liquors for the protection of the welfare, health, peace, morals, and safety of the people of the state. Also, the state provides its E license liquor sales data monthly which contains more than 20M transactions records since 2012. Class "E" liquor license (LE) allows for the sale of alcoholic liquor for off-premises consumption in original unopened containers. In other words, this license is designed for customers who purchase alcohol and then take it somewhere else. Therefore, the data can be used in multiple ways to analyze customer behavior for liquor consumption. This project focused on small business owners who are targeting to open a liquor store in Iowa and researched the dataset to suggest the best location and liquor categories to the owners.

Data processing

I used datasets of Iowa_Liquor_Sales and Iowa_Liquor_Products to create a relational database as shown in figure 1, and I took datasets of Iowa county population and us-county-boundaries to perform analysis and visualize the results. In specific, table 1 shows the processes of data cleaning and feature engineering.

Figure 1. Relational Database after data cleaning



Table 1. Data cleaning process and the result

Process Result
1) Applied lower strings in dataset Unified the names of store, county, and city
2) Filled out missing values from identical store number in other rows Reduced the number of missing values about 90%
3) Checked all data in Iowa Removed some transactions of different state
4) Checked misspelled Had the right unique number of county and city
5) Used geocode by Google API Updated all the location coordinates
6) Calculated transaction frequency in date Distinguished active / non-active stores



Data Analysis - Location

I approached this dataset based on the calculation of total sales per store so that I could predict how much total sales a store can earn in 2022 as shown in figure 2. Polk was the top county, Scott, Cerro Gordo, and the other counties were following. Brighter color means it had a higher predicted total sales per store.

Figure 2. Total sales per stores by county



Then, I mapped the active stores’ location on the Polk layout and researched if there’s any specific location popular as shown in figure 3. The pink dots are the stores and the orange lines are the county boundary. A lot of stores were marked near Des Moines which is the biggest city in Polk and some stores from Dallas county, the west county from Polk, were also placed in the same metropolitan area. For that reason, I included those stores in Dallas for this study.

Figure 3. Active stores location in Polk and around the county



In order to see any pattern in store locations, I used K-Means clustering with variables of total sales, proof, and bottle volume size, which are the numeric type from the given dataset. Before I applied K-Means clustering I had to perform standardization for each variable because K-Means clustering is based on Euclidean distance. Otherwise, a high-scale variable may only play a role during the clustering. The elbow method indicated that the dataset could be divided into 3 groups so we performed K-Means clustering with k=3. Unfortunately, it’s difficult to point out that those groups were affected by the store location as shown in figure 4.

Figure 4. K-Means clustering with elbow method



Since I couldn’t find a clustering behavior, I had to apply the same metric to the cities in Polk to determine the best location. As a result, the most sales city was Windsor Heights as shown in figure 5. Then, I investigated Windsor Heights to understand the reason why it had more sales than the other bigger cities. Figure 6 and table 2 revealed that there are dominating food chain stores and department stores in Windsor Heights. I interpreted this as people from the county are coming to Windsor Heights for the big stores but the interest of this study is local small businesses. In consequence, I narrowed down the store types into ‘Convenience, Drugstore, Liquor/Spirits/Wine, and Distillery/Bar/Restaurant’  only and figure 7 shows Des Moines was the top sales for the small businesses. Therefore, we recommended Des Moines to open a new store.

data for liquor store

Figure 5. Total sales per store by city

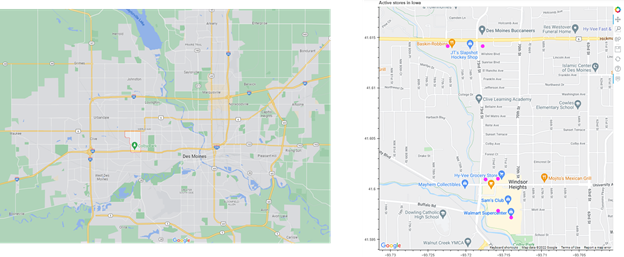

Figure 6. Windsor Heights size and stores location



Table 2. Windsor Heights is dominated in liquor sales by big companies

data for liquor store

data for liquor store



data for liquor store

Figure 7. Total sales per store by city in small business



Data Analysis - Liquor Category

For the next step, I also looked into item lists for stores by K-Means clustering. I chose k = 3 for clustering as resulted from the elbow method. The items were grouped by size as small, medium vs large first, and by log of the retail cost for the second as shown in figure 8. The purpose of the log scale for the retail cost was to fit the variable for the clustering and the result would be more accurate with normal distributed features. From the clustering, we could observe that the most of high retail cost items are in the medium size of bottles.

data for liquor store

Figure 8. K-Means clustering for liquor items



Then, I compared the category trends between Des Moines and overall Iowa as shown in figures 9 and 10. Figure 9, the overall result, indicated that Whiskey and Vodka were the top consuming in Iowa. Figure 10, the Des Moines result, also shows Whiskey and Vodka were the most popular in the city but I can observe that Brandy took a high percentage in the city as well. This could be interpreted as a specialized store might have competitiveness in the Des Moines liquor market. For example, store number 5600 didn’t follow the general trend of other stores but the store was still in the top 2 in the city because of the specialization in brandy. Figures 11 and 12 show the top and bottom stores of total sales in Des Moines. Figure 11 shows that following the state/city trend or having a specialization liquor could be successful, while figure 12 shows neither they followed the trends nor having specialized liquor type. Even those bottom total sales stores didn’t have all liquor options in their store.

data for liquor store

Figure 9. Overall category trends in Iowa



data for liquor store

Figure 10. Overall category trends in Des Moines



data for liquor store

Figure 11. Top 2 total sales stores in Des Moines



data for liquor store

Figure 12. Bottom 2 total sales stores in Des Moines



Conclusion

For these reasons, I would like to suggest Des Moines, Polk for a new store and the medium bottle size, over 450ml and equal or less than 1750ml, with having all category options. Especially since Whiskey and Vodka are the most popular in Iowa, the new liquor store may want to store these two categories mainly.



Future Work

  1. I assumed that each store has the same size because I didn’t have a resource for the store area. Therefore, future work will explore options to address this limitation.
  2. I will consider the dynamics of stores opening and shutting down into the decision of new store location. This will lead a precise prediction.
